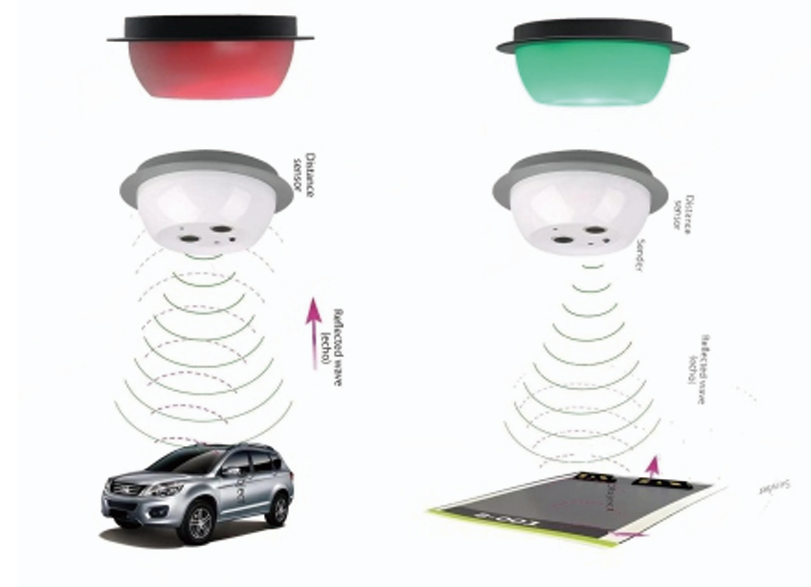

| Core Function | Utilizes ultrasonic ranging to collect real-time parking space occupancy data and controls an external indicator light to display different parking statuses. |
| Accuracy | ≥99% |
| Range Error | 2cm |
| Debugging | One-key parameter configuration via mobile APP |

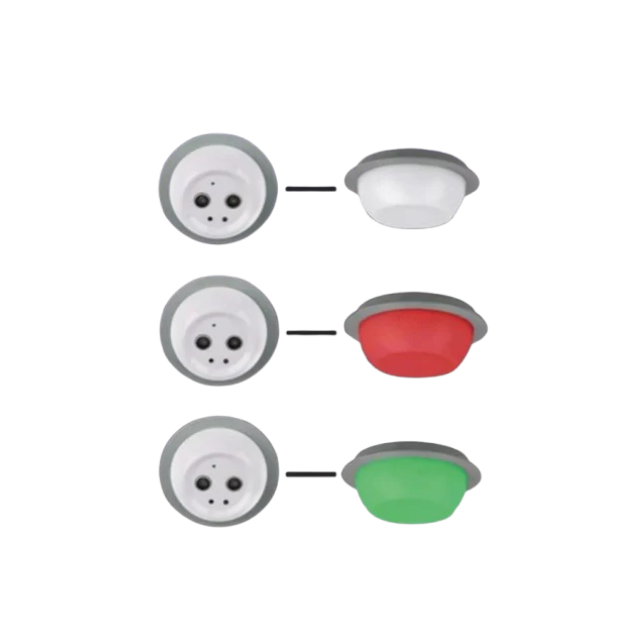

| Customization | Customizable indicator light colors for empty spaces |
| Upgrades | Supports server-side one-click upgrade and quick replacement of extended programs. |
| Reservation | One-key space reservation function for managers to forcibly occupy special bays. |
| Working Voltage | 10~28V (Rated 24V) |
| Housing Material | ABS engineering plastic |
| Dimensions | 120 * 45mm |
| Working Temperature | -30°C~+75°C |
| Environmental Humidity | 40% ~ 70%RH (Non-condensing) |
| Communication Method | RS485 |
| Installation Height | 2~4.0m |
Split-Type Ultrasonic Parking Detector NPS-SUD.01
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Split-Type Ultrasonic Parking Detector NPS-SUD.01 V.01 | September 2026 |
