| Primary Function | Detects parking space status using ultrasonic ranging and wirelessly uploads it via LoRa to corresponding wireless indicator lights in multi-level parking garage systems. |
| Power Supply | Battery powered |
| Voltage | DC 2~3.6V |
| Battery Life | 3–5 years |
| Communication Methods | LoRa, infrared |
| Communication Distance | <30m (to wireless indicator light) |
| Accuracy | ≥99% |
| Dimensions | Φ124 × 44mm |
| Housing Material | ABS engineering plastic |
| Protection Rating | IP65 (splash-proof design) |
| Operating Temperature | -30°C~75°C |
| Debugging | Mobile app wireless debugging |
| Configuration | Mobile app for channel/address setup |
| Upgrades | Supports wireless upgrades |

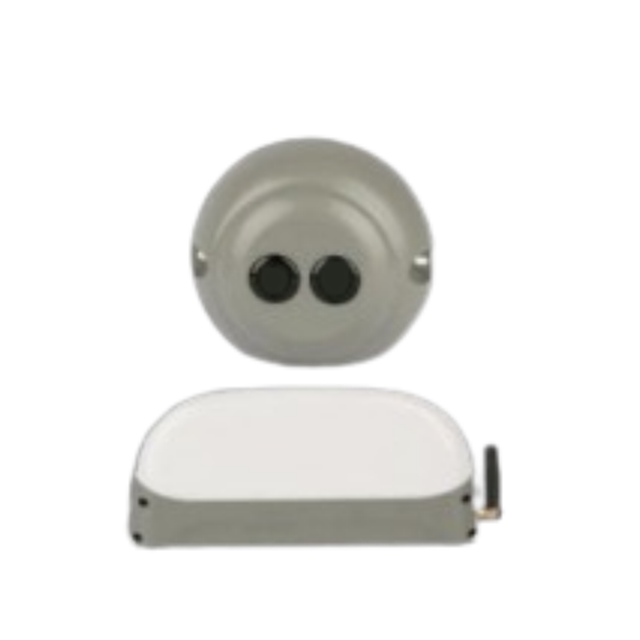

Floor-Mounted Ultrasonic Parking Detector NPS-FUD.01
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Floor-Mounted Ultrasonic Parking Detector NPS-FUD.01 V.01 | September 2026 |
