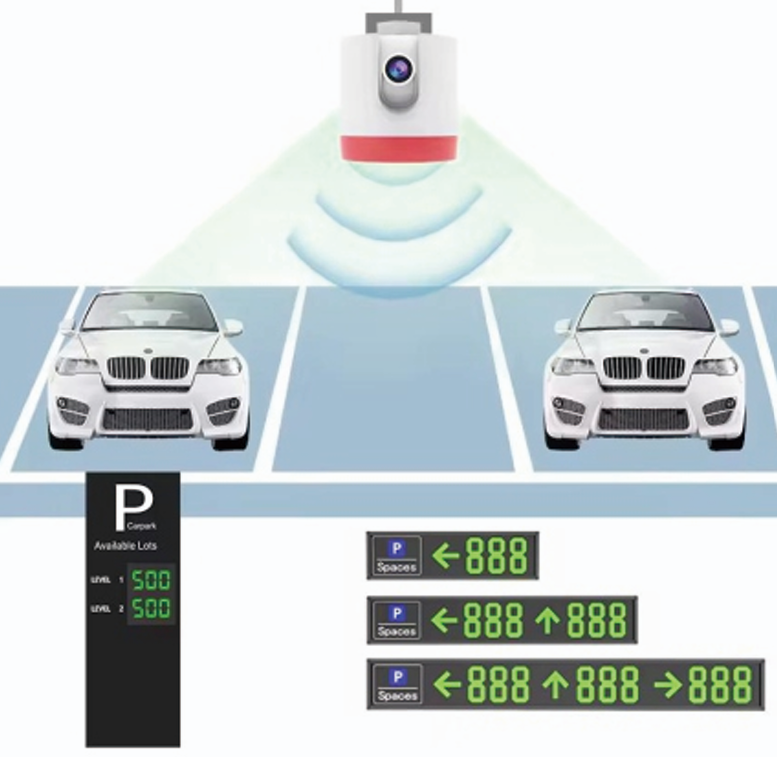

| Primary Function | Video recognition terminal for 2–6 bays, identifying parking status and license plates, and transmitting data via TCP/IP to the video area controller. Each video zone controller can connect to and control up to 60 three-space video parking sensors (6-bay units are considered two 3-bay units). |
| Controlled Bays | 1–3 bays / 2–6 bays |
| Occupancy Detection | ≥99% |
| License Plate Recognition | ≥97% |
| Recognition Speed | <5 seconds |
| Image Sensor | 1/3 CMOS |
| Image Resolution | 4 Megapixels |
| Video Compression | H.264 (Video) / JPEG (Image) |
| Frame Rate | 1–25 fps |
| Communication Interface | 2× Network ports + 1× RS485 + 1× Power Input/Output. |
| Working Voltage | DC12V–24V (wide voltage) |
| Average Power | <6W |
| Lens | External lens for angle adjustment without disassembly. |
| Configuration | Configurable via PC software (IP address, brightness, contrast, saturation, sharpness, bitrate, bay count/number, alarm, RS485 settings, indicator light settings). |
| Detection Zone | Supports making inference areas (e.g., bay numbers). |
| Indicator Light | Red, Green, Yellow, Blue, Pink, Cyan, and White (seven colors), software controllable. |
| Alarm Functions | Supports specialized parking violation alarms (reserved bays, multi-vehicle, cross-line, abnormal management). |
| Operating Temperature | -30°C to 70°C |
| Optional/Expandable Features | Built-in Bluetooth iBeacon chip. External parking indicator light connection. Non-standard PoE daisy-chain support. |

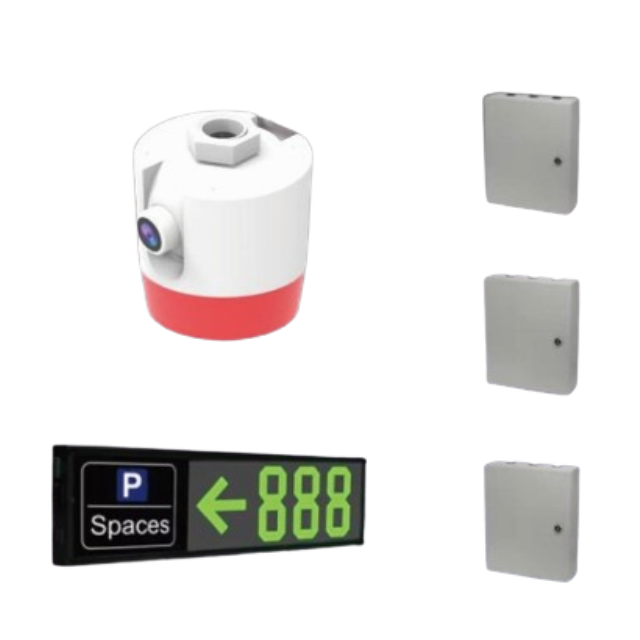

Video Parking Detector (3-Bay/6-Bay) NPS-VPD(3/6)
