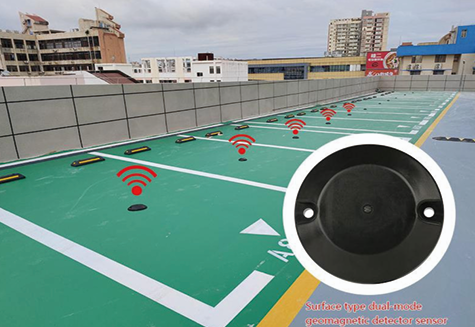

| Primary Function | Accurately determines parking space occupancy for outdoor guidance systems. |
| Detection Method | Dual-mode detection using microwave radar and geomagnetic sensors. |
| Configuration Method | Mobile phone app. |
| Housing | High-strength black PC+ABS+PA66 shell with strong compressive strength. |
| Protection Rating | IP68. |
| Dimensions | Diameter: 175 mm; height: 40 mm (Ø175 × 40 mm). |
| Weight | 650 g. |
| Communication Method | LoRa. |
| Communication Range | 280 m. |
| Power Supply | Battery (DC 2–3.6 V). |
| Battery Capacity | 18,000 mAh. |
| Battery Life | 3–5 years. |
| Remote Upgrade | Supported. |
| Wireless Upgrade | Supported. |

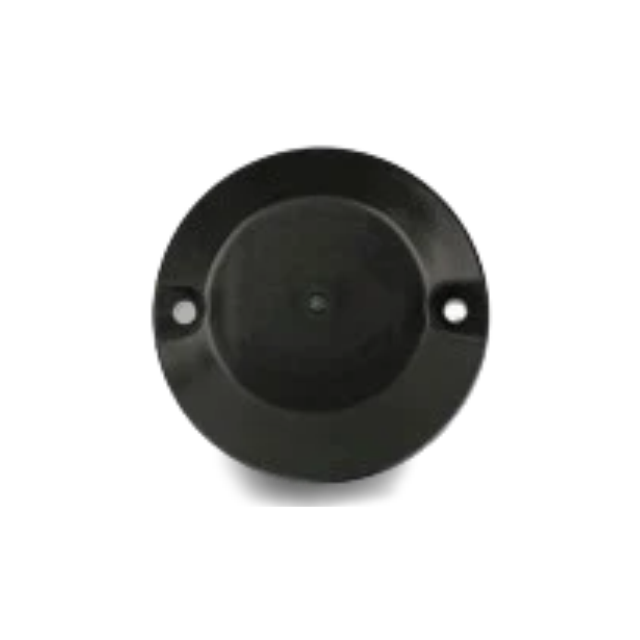

Ground-Based Dual-Mode Geomagnetic Detector NPS-GGD.01
Description
Datasheet
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Ground-Based Dual-Mode Geomagnetic Detector NPS-GGD.01 V.01 | September 2026 |
