| Primary Function | Aggregates parking space information, uploads data to the controller, and distributes available space data to outdoor wired area controllers. Enhances system capacity and communication stability in large or complex outdoor environments. |
| Key Feature | Allows flexible logical association between any detector and any display screen, independent of their physical location. It can operate correctly offline (disconnected from a computer) and supports remote upgrades. |
| Communication Methods | CAN (Communication Distance: ≤1000m); TCP/IP (Communication Distance: ≤80m). |
| Protection Rating | IP65 |
| Dimensions | 300 x 230 x 130mm |
| Operating Voltage | AC220V |
| Included Components | Power supply, control mainboard, and installation housing. |

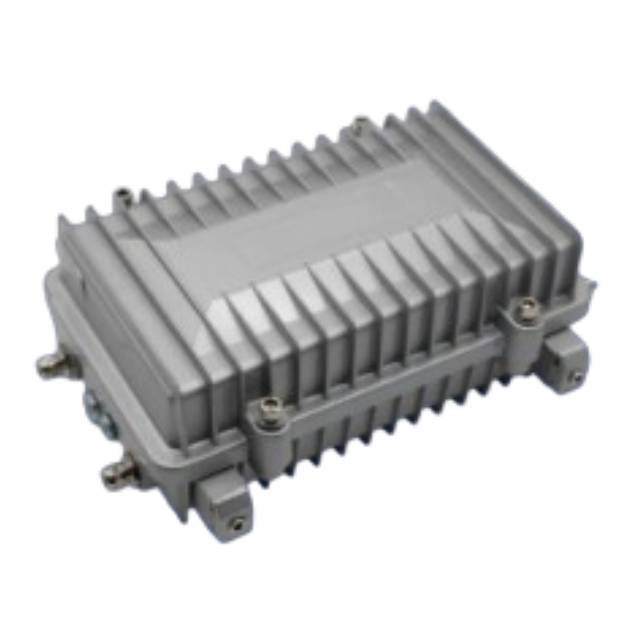

Central Controller Outdoor NPS-CCO
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Central Controller Outdoor NPS-CCO V.01 | September 2026 |
