| Primary Function | Installed at the front of each garage group, it wirelessly collects parking status from the group’s detectors, determines overall occupancy, and wirelessly uploads this information to the corresponding wireless area controller. |
| Detector Capacity | 1–29 detectors |

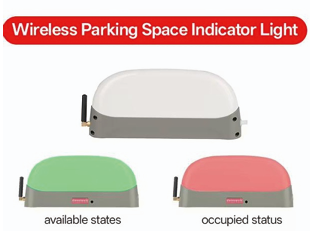

| Indicator Type | Red/green dual-color |
| Visibility | >30m |
| Communication Method | LoRa wireless communication |
| Distance (to Detector) | <30m |
| Distance (to Controller) | <50m |
| Working Voltage | DC 10~28V (rated 24V) |
| Dimensions | 229 × 103 × 44mm |
| Housing Material | ABS engineering plastic |
| Installation Position | Bridge frame or mechanical garage column |
| Operating Temperature | -30°C~+75°C |

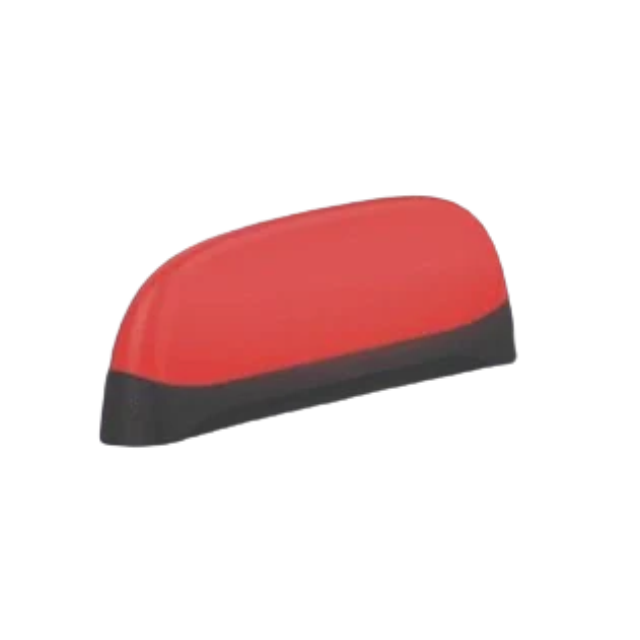

Floor-Mounted Ultrasonic Parking Detector NPS-FUD.02
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Floor-Mounted Ultrasonic Parking Detector NPS-FUD.02 V.01 | September 2026 |
