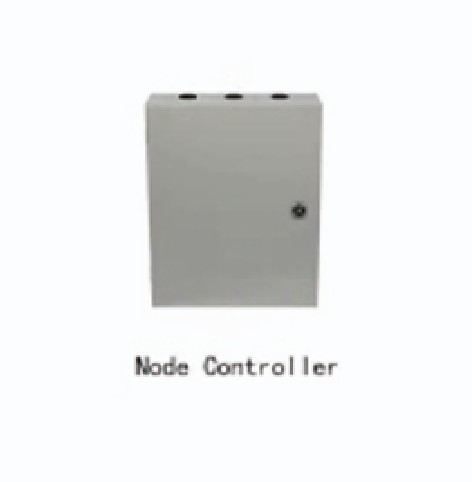

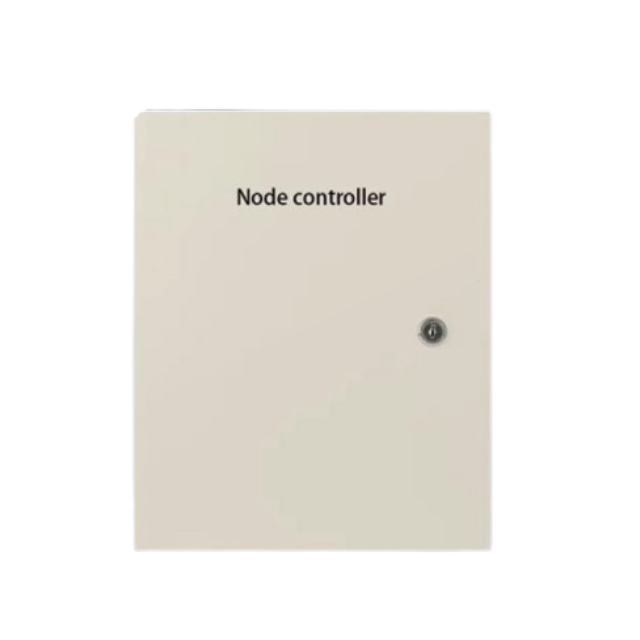

Node Controller Indoor NPS-NCI

Description

Primary Function	Aggregates parking information from its area, encodes and uploads data to the Indoor Central Controller, and distributes available bay data to Indoor Area Controllers. Resolves device capacity issues in large networks and ensures communication stability in complex parking structures.
Communication Method	CAN
Communication Distance	≤1000m
Device Capacity	25 Area Controllers
Operating Voltage	AC 110~240V
Power Consumption	≤2W (controller itself, excluding detectors)
Dimensions	320 × 260 × 90mm
Weight	3.5kg
Housing Material	Galvanized sheet
Operating Temperature	-30°C~75°C
Included Components	Power supply, controller mainboard, installation housing, and air switch.
