| Model | NLC-8000DSI |
|---|---|
| Video & Audio | H.264/H.265; HDMI embedded audio + 3.5 mm stereo I/O (Input Sensitivity: 775mV), PCM transmission |
| Video Interfaces | 1 × HDMI IN, 1 × HDMI OUT, 1 × VGA OUT, 1 × USB 3.0 (video input) |
| USB | 2 × USB 2.0 (KVM) |
| Network | 1 × RJ45 (10/100/1000Base-T, PoE), 1 × SFP (optional) |
| Control Interfaces | RS-232, RS-485, 3 × I/O, 2 × relay, reset button, I/O mode switch |
| IR | 1 × IR learning, 4 × IR OUT |
| Display | 2.23” OLED (128 × 32) |
| Power supply | DC 12 V / PoE |
| Max power consumption | 12 W |
| Temperature | Operating: −10° C ~ +45° C; Storage: −15° C ~ +45° C |
| Humidity | 5%–90% (non-condensing) |
| Weight | Approx. 0.9 kg |
| Dimension (L×W×H) | 220 × 200 × 44 mm |

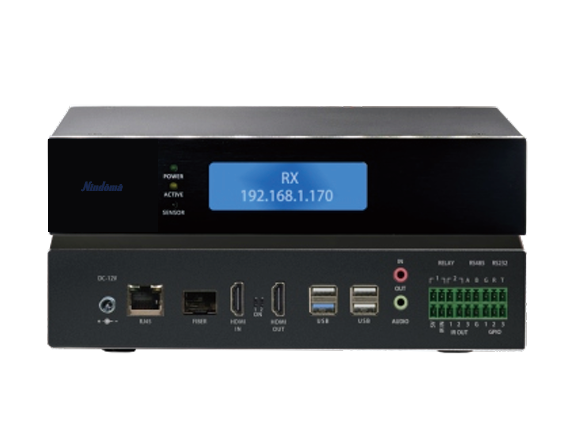

Distributed System Node (Encoder-Decoder Integrated) NLC-8000DSI
Features :
- Integrated I/O design configurable as input, output, or KVM node
- Distributed architecture with embedded chip + FPGA; no server/controller required, each node operates independently for higher stability and lower maintenance
- Fanless design; supports standalone 1U or dual-unit side-by-side installation
- Supports 4K@30fps, 1080P@60/30fps I/O with backward compatibility, multi-stream transmission, and simultaneous 4K/2K output
