| Model | NLC-7ENV |
|---|---|
| System | |
| CPU | 350 MHz main MCU + dual MCU |
| RAM | 128K (cache) / 32K |
| ROM | 4G |
| Communication | |
| Wireless | 2.4G Wi-Fi |
| Range | Up to 100 m (open area) |
| Battery Life | >8 hours |
| Interface | |
| PoE | RJ45 |
| Power Port | Type-C, 5–12V output (PD protocol) |
| Switch | Toggle switch |
| Battery | 3.7V / 6400mAh, 4 × 18650 |
| Mechanical | |
| Material | Aluminum alloy base + PC housing |
| Installation | Desktop / wall mount |
| Dimensions | 200 × 150 × 110 mm |
| Weight | 1.5 kg |
| Environment | |
| Operating Temperature | −10° C to +60° C |
| Operating Humidity | 30%–90% (non-condensing) |
| Storage Temperature | −20° C to +70° C |
| Storage Humidity | 30%–90% (non-condensing) |

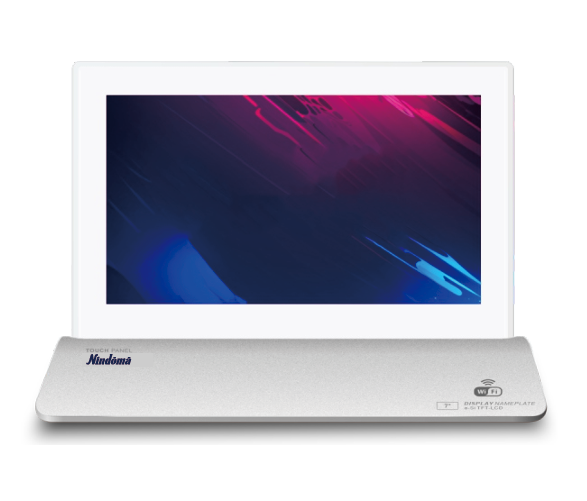

7″ Wireless Dual-Sided Full-Color LCD Electronic Nameplate with Voting NLC-7ENV
- 7-inch IPS touchscreen (1024 × 600) with full viewing angle.
- Domestic MCU and uCOS system; customizable UI interface.
- Supports up to 100 terminal connections with configurable display modes.
- Smart terminal design for attendee information display.
- Integrated aluminum alloy housing with modern appearance.
- Built-in large-capacity rechargeable battery.
- Supports centralized charging case for improved efficiency.
