| Model | NLC-8000C / NLC-8000D |
|---|---|
| Microphone type | Electret condenser |
| Directivity | Cardioid |
| Frequency response | 20 Hz – 20 kHz |
| Sensitivity | −33 ± 1.5 dB (0 dB = 1 V/Pa, 1 kHz) |
| SNR | ≥80 dB(A) |
| Dynamic range | ≥80 dB |
| Max power consumption | 1.0 W |
| Standard | IEC 60914 |
| Power supply | From main unit |
| Color | Dark gray |
| Dimensions (L × W × H) | 140 × 110 × 60 mm (excluding microphone) |
| Microphone length | 210 mm |
| Installation | Desktop |
| Weight | 1 kg |

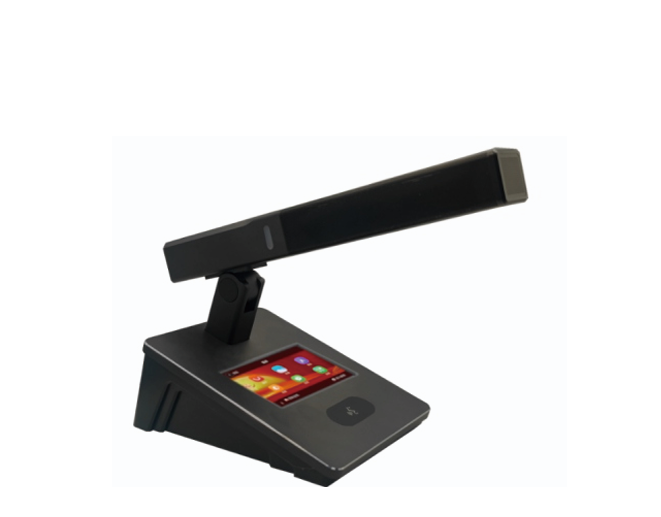

Conference Unit with 3.5-inch Touch Screen (Dark Gray) NLC-8000(C/D)
