| Model | NLC-8000MX |
|---|---|
| Card Capacity | 2 I/O cards (8 channels) + 1 control card |
| Serial Control | RS-232 (9-pin D-type), 9600 bps, 8 data bits, 1 stop bit |
| Interface bandwidth | 10.2 Gbps |
| RS-485 (Optional) | 4-pin 3.8 mm Phoenix connector |
| Ethernet (Optional) | RJ45, 10/100 Mbps adaptive, full/half duplex |
| Power supply | 100–240 VAC, 50/60 Hz |
| Operating temperature | −20° C to +70° C |
| Power consumption | 18 W |
| Chassis | 2U |
| Dimensions (L × W × H) | 483 × 400 × 88 mm |
| Weight | 5 kg |

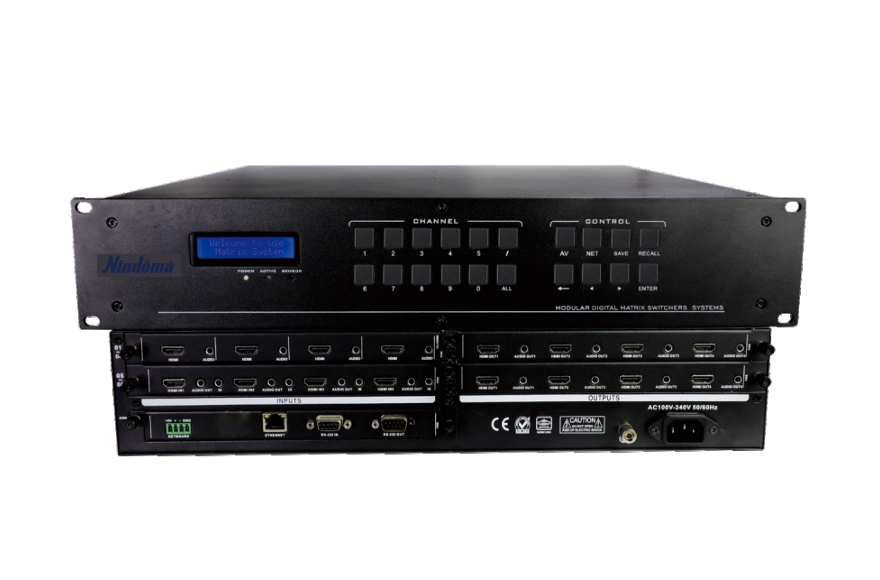

8-Channel Hybrid Modular Matrix Switcher NLC-8000MX
The hybrid plug-in matrix system features a modular design for flexible configuration. It supports switching and processing of various digital and analog signals. The system supports bidirectional RS-232 and IR signal control and enables synchronized switching of video and audio signals. It is suitable for applications such as broadcasting, multimedia conference rooms, large display systems, education, and command centers.
