- Operating voltage: DC 9V~35V
- Standby current: ≤ 50uA
- Alarm current: 40~50mA@DC24V
- Alarm indication: Red LED
- Reset: Power off
- Sensitivity: 0.08~0.16dB/m
- Operating temperature: 0°C~50°C
- Operating humidity: ≤95%RH (no condensation)
- Alarm output: Remote led for 2 wires
- Contact rating N/A for 2 wires
- Standard: EN54-7:2008
- Certificate: CE
- Dimension: Ø98.5*H47.8mm

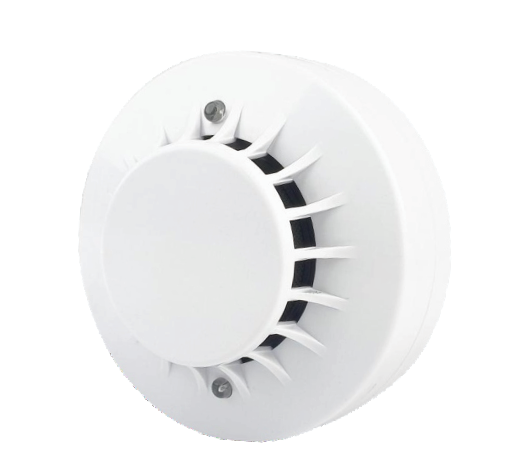

Wired Smoke Detector N.SD-DE607
Wired Smoke Detector N.SD.DE607
Description
