- Operating voltage: DC 9V~35V
- Standby current: 2 WIRE: ≤50uA
- Standby current: 4 WIRE: ≤50uA (relay NO)/≤16mA (relay NC)
- Alarm current: 2 WIRE: 20~25mA @12V/40~50mA @24V
- Alarm current: 4 WIRE: ≤40mA (relay NO)/≤20mA (relay NC)
- Temp. trip point: 57°C
- Alarm indication: Red LED
- Operating temperature: -10°C ~ 50°C
- Operating humidity: ≤95%RH (no condensation)
- Standard: EN54-5:2008
- Certificate: CE
- Dimension: Ø100.7*H50.7mm
- 2 wire or 4 wire optional

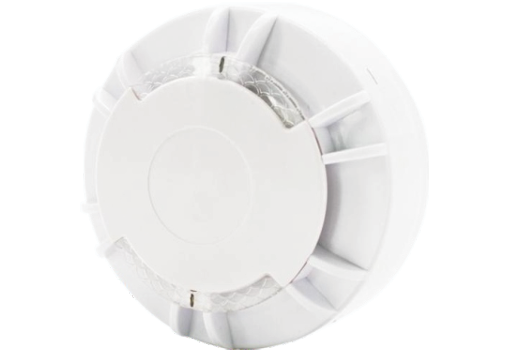

Wired Heat Detector N.HD-DE502-(2W/4W)
N.HD-DE502-2W: Wired Heat Detector 2 Wire
N.HD-DE502-4W: Wired Heat Detector 4 Wire
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Wired Heat Detector N.HD-DE502-(2W/4W) | – |
