- Operating voltage: DC 9V~35V (DC40V~60V optional)
- Standby current: ≤80uA
- Alarm current: ≤40mA@DC24V; ≤25mA@DC12V
- Alarm indication: Red LED
- Operating temperature: 0°C~50°C
- Operating humidity: ≤95%RH (no condensation)
- Sensitivity: 0.08~0.16dB/m
- Certificate: EN54-7 by TUV lab
- Dimension: Ø103*H47mm
- 2 wire or 4 wire optional

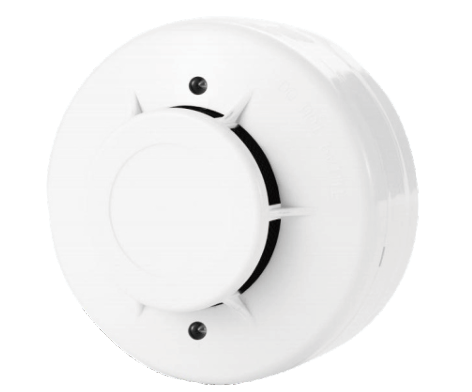

Wired Smoke Detector N.SD-DE606-(2W/4W/R)
N.SD-DE606-2W Wired Photoelectronic Smoke Detector 2 Wire
N.SD-DE606-4W Wired Smoke Detector 4 Wire with Relay
N.SD-DE606-R Wired Smoke Detector with Relay & Reed Switch
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Wired Smoke Detector N.SD-DE606-(2W/4W/R) | – |
