- Operating voltage: DC 9V~35V
- Standby current: ≤ 80uA
- Alarm current: ≤40mA@DC24V; ≤25mA@DC12V
- Sensitivity: 0.08~0.16dB/m
- Temp.trip point: 57℃
- Alarm indication: Red LED
- Operating temperature: -10℃~50℃
- Operating humidity: ≤95%RH (no condensation)
- Standard: EN54-7:2008; EN54-5:2008
- Certificate: CE
- Dimension: Ø103*H55mm
- 2 wire or 4 wire optional

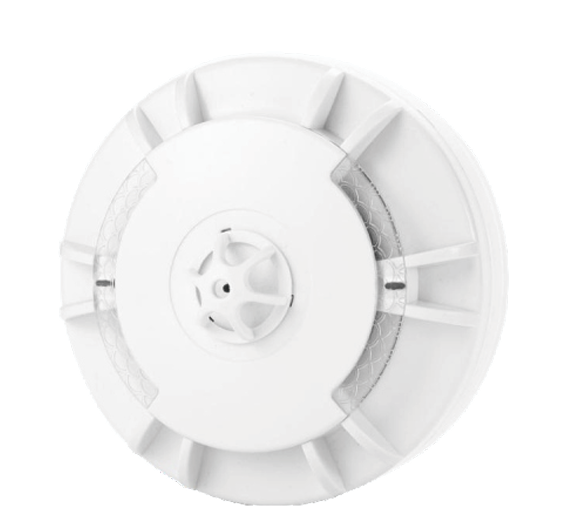

Wired Photoelectronic Smoke Detector N.SHD-DE605-(2W/4W/R)
N.SHD-DE605-2W: Wired Photoelectronic Smoke Detector 2 Wire
N.SHD-DE605-4W: Wired Photoelectronic Smoke Detector 4 Wire
N.SHD-DE605-R: Wired Smoke Detector with Extra Relay
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Wired Photoelectronic Smoke Detector N.SHD-DE605-(2W/4W/R) | – |
