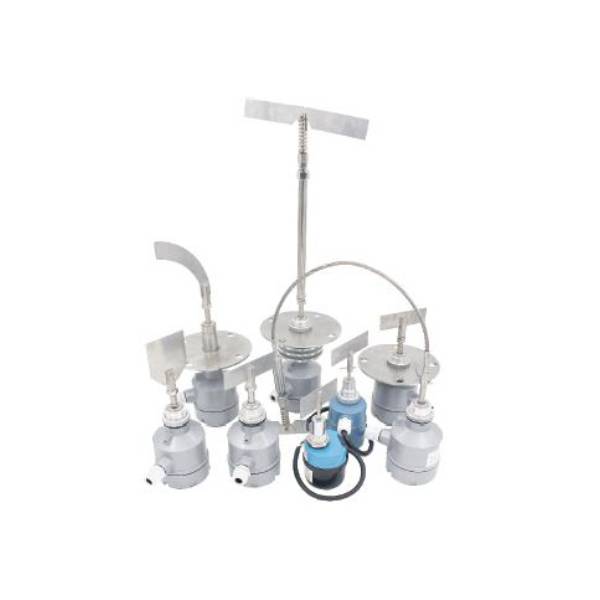

Roraty Paddle Level Switch N-Rp Series utilizes micro motor as drive device, transmission shaft contacts with clutch. When it doesn’t touch with mineral, the motor runs normally; When the paddle touch with mineral, the motor runs turning; relay outputs OFF signal and cuts the power, meanwhile it stops rotary. The resistance on the paddle is disappeared when the material gradually fall down and the testing device recover to the original state by torsion spring. Torsion could be regulated according to different gravity of material.
| Parameter | Nilai |
|---|---|
| Working Voltage | 220V/1A; DC24V/0.5A |
| Contact capacity | SPDT 5A/250VAC |
| Temp. rating | -20°C ~ 80°C |
| Power | 3W |
| Processing connection | G1″ thread; customized |
| Protection grade | IP 65 |
| Vane rotating speed | 1RPM |
| Torque | 10kg.cm |
| Voltage resistance | 1500VAC x 1min |
| Suitable gravity | ≥0.4g/cm³ |
| Electric interface | 1/2″ PF |
| Installation | Vertical or horizontal installation |
Manual Installation
| No | Name | Date |
|---|---|---|
| 1 | Roraty Paddle Level Switch N-RP Series | November 2022 |
