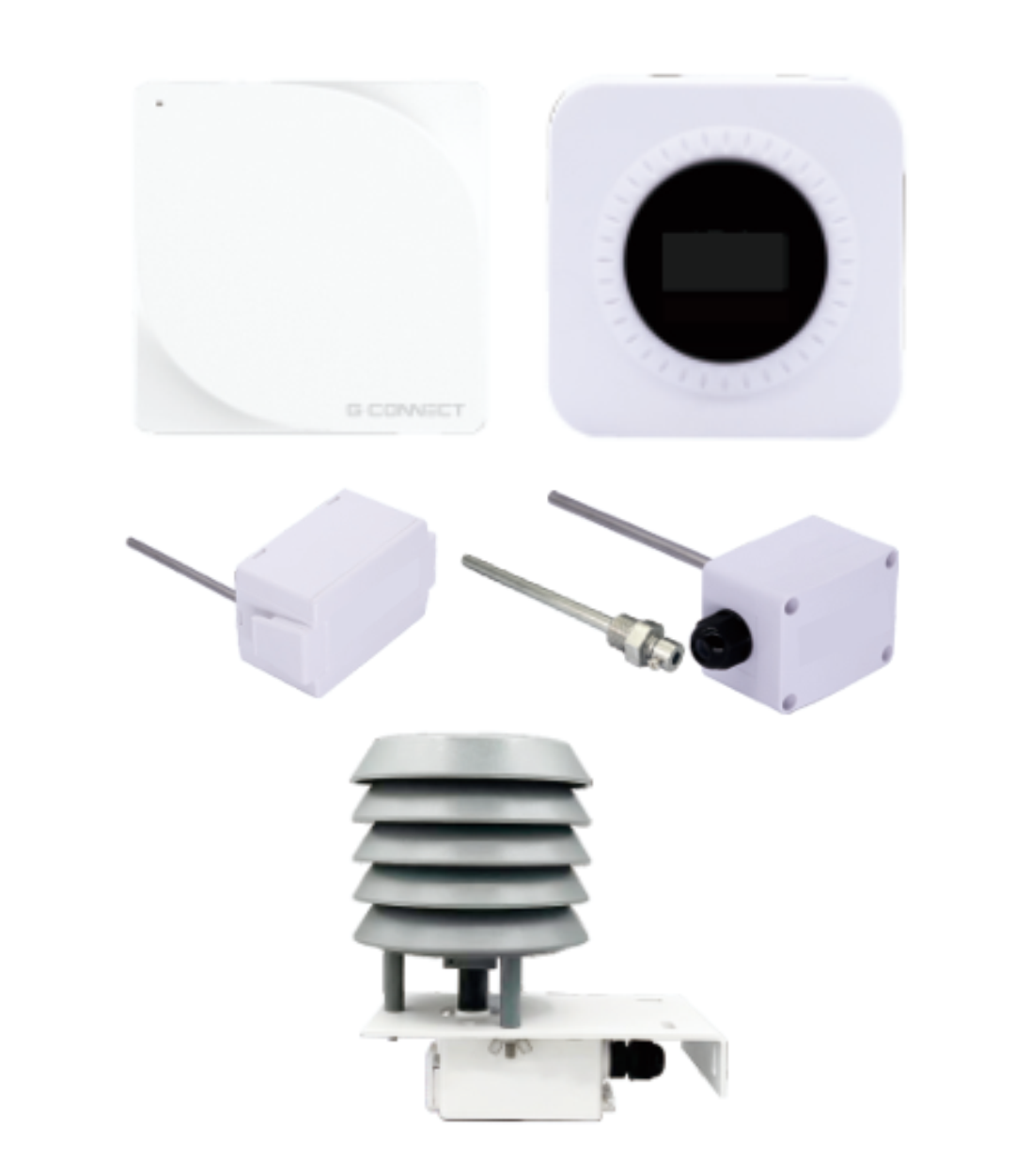

100 series temperature sensor/transmitter adopts high-precision digital temperature sensors and digital circuits, with a multi angle ventilation design to avoid internal temperature rise affecting measurement accuracy. Multiple installation methods and output options are available.
Suitable for commercial buildings, offices, laboratories, warehouses, hospitals, hotels, cinemas, museums, electronics and pharmaceuticals, food factories, silk and paper industries, chemical and storage warehouses, cold storage computer rooms, and greenhouses.
Features and Benefits
-
High-precision sensor module
-
Quick and concise installation method
-
Long term stability
-
Diversified output forms
-
Wide temperature acquisition range
Technical Overview
| Feature | Specification |
| Detected parameter | Temperature/T |
| Range | 0℃-50℃, 0℃-100℃, -40℃-60℃, -40℃-125℃ |
| Resolution | 0.1℃ |
| Accuracy | ±0.3℃@25℃ |
| Response time | < 15S (1m/s Wind Velocity) |
| Power supply | Typically DC24V(DC12V-DC36V)&AC24V±20% |
| Output |
4-20mA(2-wire)
0-10V, 4-20mA(3-wire)
Separate RT output port
RS485 Modbus-RTU
NB-IoT, LoRa
|
| Load | $\ge 500\Omega$(current type) |
| Power consumption | $< 1\text{W}$ |
| Certification | CE EN 55032:2015 / EN 55035:2017 |
Note: All measured parameters are obtained under the environment of 20 ℃ and 50% RH under 1 standard atmospheric pressure.
Environment
| Parameter | Value |
| Environment | -40℃-60℃(Display-20℃-60℃), 0%RH-90%RH(non-condensing) |
| Storage temperature | -20℃-70℃ |
