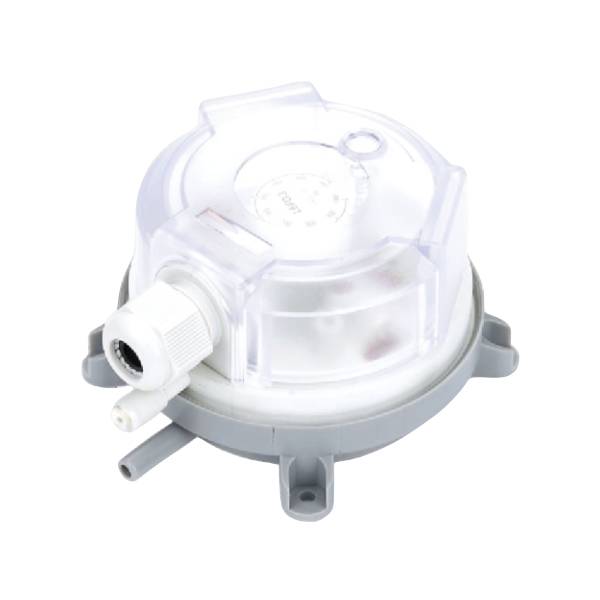

N-ADPS Series is an adjustable differential pressure switch capable of detecting minuscule changes in pressure due to the size and proven design. The switch set point or switching point can field adjustable without the need of a manometer by simply using the adjustment knob and the built in calibrated visual scale. This switch is equipped a clear cover that not only protects the adjustment knob to be move involuntary but also provides class Ip54 protection.
| Media | Air, non-combustible and non-aggressive gas |
| Max Operating Pressure | 10kPa |
| Mounting Position | Diaphragm in any vertical Plane |
| Degree of protection | IP 45 (with cover), IP 00 (without cover) |
| Operating Temperature | -40°C to +85°C |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance initial < 100 milliohms, Current 1.5A(0.4A)/250V |
| Terminal | 6.3mm x 0.8 blade or screw terminal |
| Connection | Φ6.4mm for tube connection |

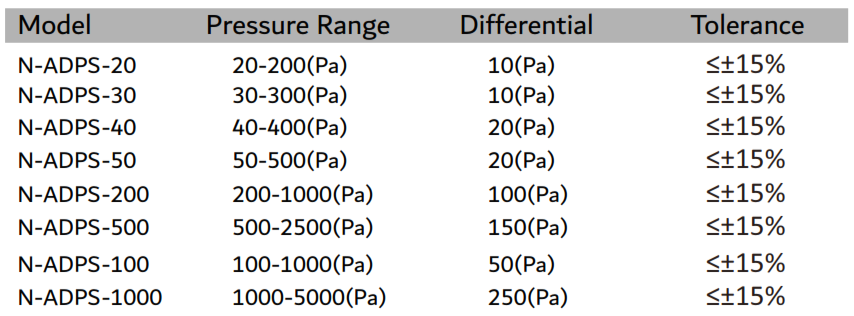

Specifications
Manual Installation
| No | Name | Date |
|---|---|---|
| 1 | Air Differential Pressure Switch N-ADPS Series | November 2022 |
