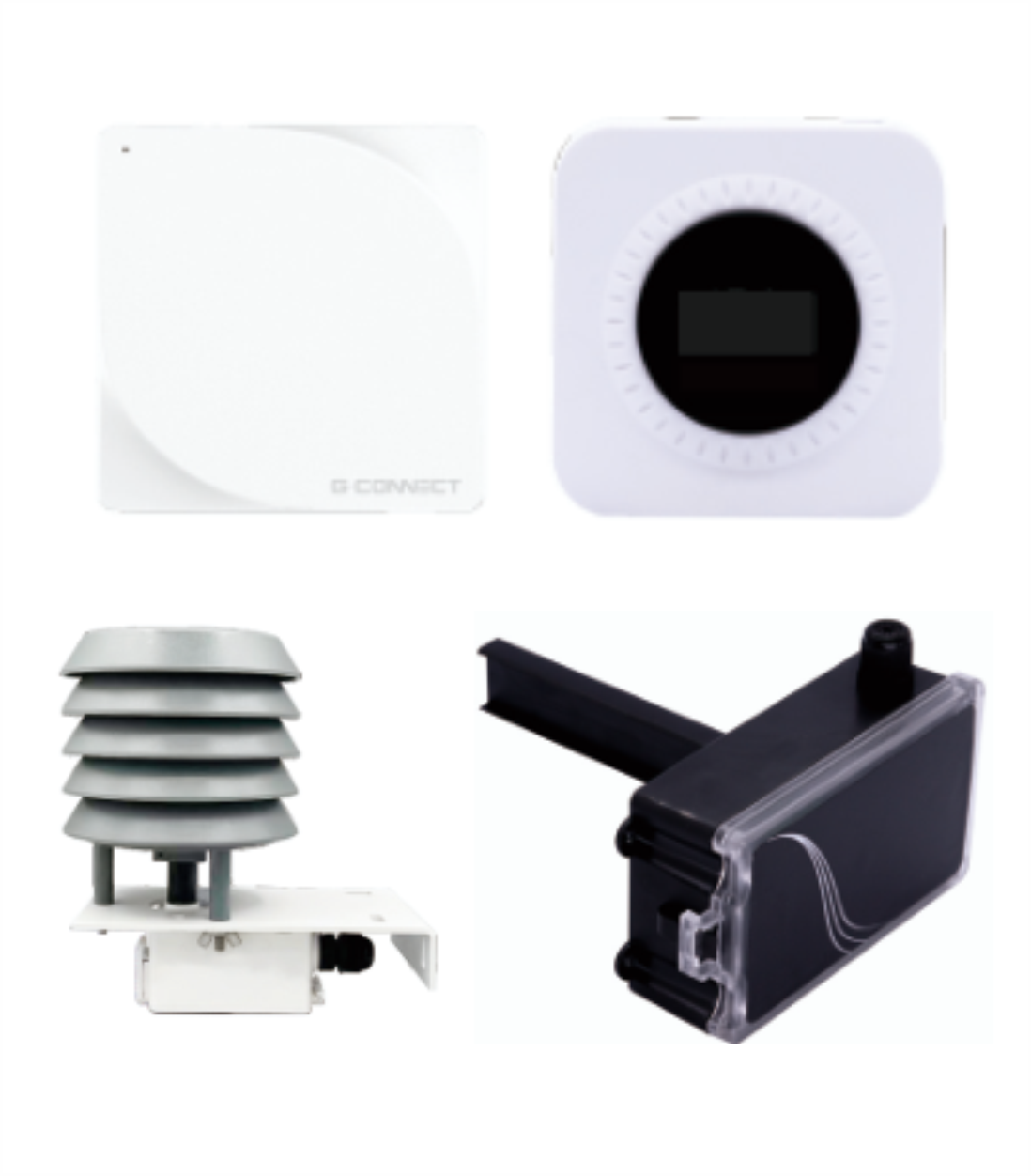

Multi-Parameter Transmitter iAir Series

This product is an environmental parameter monitoring equipment integrating temperature, humidity, particulate matter (PM2.5, PM10), carbon dioxide (CO2), volatile organic compounds (VOC), total volatile organic compounds (TVOC) and formaldehyde (HCHO) concentration measurement. The product has the advantages of small volume, beautiful appearance, multiple detection parameters, high measurement accuracy and long service life, adopts the standard Modbus-RTU protocol RS485 output, and is an ideal choice for modern intelligent building and office environment physical quantity monitoring equipment.

Features and Benefits

Multiple outputs
Easy to install
AC/DC power supply
Simultaneous monitoring of multiple parameters

Technical Overview

Feature	Specification
Power supply	Typically DC24V (DC12V-DC36V) & AC24V±20%
Output	RS485 Modbus-RTU NB-IoT, LoRa
Load	≥500Ω
Power consumption	< 2W
Housing	ABS+PC
Weight	CE EN 55032:2015 / EN 55035:2017

Note: All measured parameters are obtained under the environment of 20 ℃ and 50% RH under 1 standard atmospheric pressure.

Environment

Parameter	Value
Environment	-20℃-50℃, 0%RH-90%RH (non-condensing)
Storage temperature	-20℃-70℃
