| Primary Function | Displays the number of available parking spaces in red and green. |
| Display Logic | Shows green when the number of available spaces is greater than a preset warning level, and red when it is lower. The warning level is customizable. |
| Display Capacity | Supports up to a four-digit display. |
| Light Source | Red/green high-brightness LEDs. |
| Dimensions | 2000 × 750 × 140 mm. |
| Materials | Galvanized steel plate with spray coating, white PC, and a plexiglass panel. |
| Craftsmanship | The text portion is laser-cut with an embedded light-transmitting plate and light box. |
| Operating Temperature | −30°C to +75°C. |
| Communication Method | RS485 (standard). |
| Configuration Method | Mobile phone app for configuring the address and parameters. |
| Operating Voltage | AC 110–240 V. |
| Power Consumption | ≤30 W–70 W. |

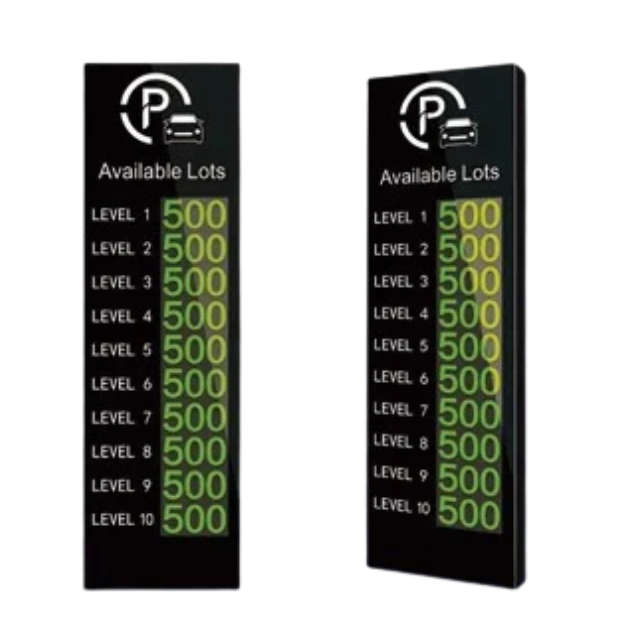

Guidance Display Outdoor NPS-GDO-G(101/102/103)
Description
Datasheet
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | Guidance Display Outdoor NPS-GDO-G(101/102/103) V.01 | September 2026 |
