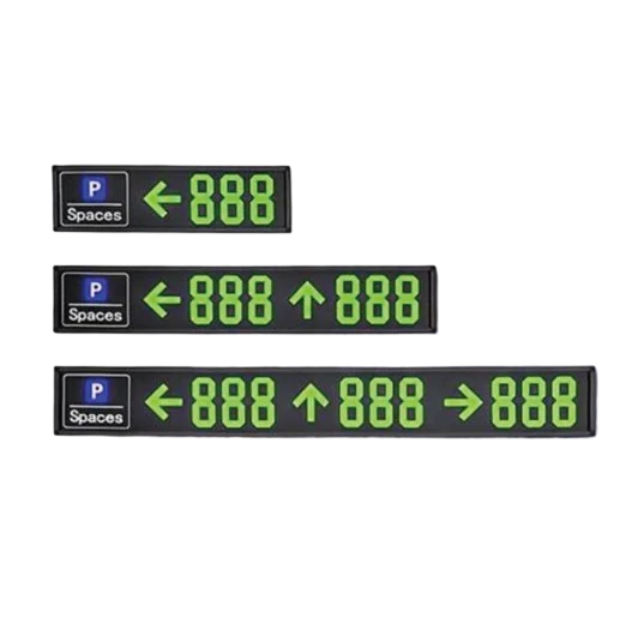

Guidance Display Indoor NPS-GDI.G(101/102/103)

Description

Primary Function	Displays the number of available parking spaces in red and green.
Display Logic	Shows green when the number of available spaces is greater than a preset warning level, and red when it is lower. The warning level is customizable.
Display Content	Arrow + 3-digit number (888) or arrow + 4-digit number (8888).
Arrow Directions	Supports 8 directions (←, ↖, ↑, ↗, →, ↘, ↓, ↙).
LED Type	High-brightness LED beads.
Overall Dimensions	650 × 183 × 56 mm / 1030 × 183 × 56 mm / 1410 × 183 × 56 mm.
Materials	Aluminum alloy housing and plexiglass panel.
Power Supply Voltage	AC 220 V.
Operating Voltage	DC 5 V.
Max Power Consumption	≤20 W–40 W.
Communication Method	RS485.
Configuration Method	Mobile phone app.
Device Composition	Includes an aluminum alloy housing, plexiglass panel, high-brightness LED module, Bluetooth driver card, and power supply.
