| Type | Dynamic |
| Sensitivity | 0 – 77dB +3dB (0dB=1V/ubar 1KHz) |
| Impedance | 500 Ohms +30% at 1KHz |
| Frequency Response | 50Hz – 15KHz, See response curve |
| Cable Extended Lenght | 2000mm |
| Enclosure Material | ABS Plastic, Rough Black |
| Trademark | Aluminum Plate |
| Net Weight | 30g |
ADS-PTM1
Description :

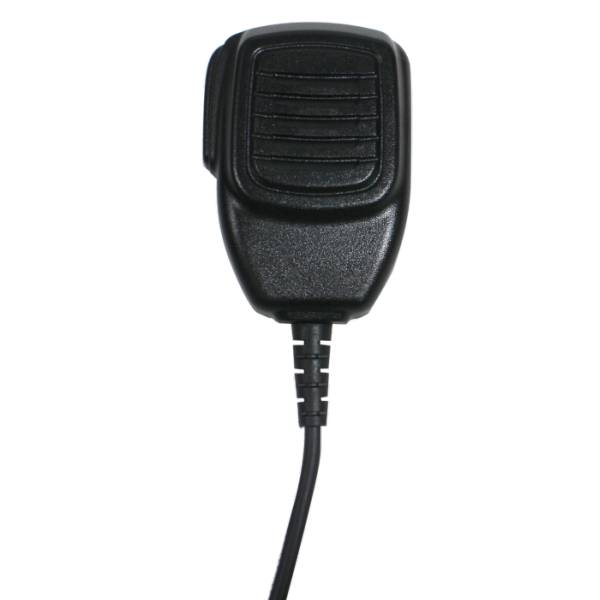

Designed to provide low-impedance and dynamic microphone for public and page systems, ADS-PTM1 handheld microphone provides clear, natural sound with highly reliable performance. The ADS-PTM1, which provides a three-core cable (one-core protection) and a reliable press-in transfer switch for continuous operation in harsh environments, can operate in a noisy environment.
Features :
- Superior voice reproduction
- User friendly operation
- Durable construction
- Dynamic transduce
- Remote switching contact
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | ADS-PTM1 | September 2022 |
