| Supply Voltage | DC24V (DC18~28V) Optional 12V, support power reverse connection protection |
| Power Requirement | 300mA/DC24V |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -40~85°C |
| Relative Humidity | 5%~95% condensation |
| Input Type | Compatible PNP or NPN |
| Isolation Voltage | 2500VDC |
| Communication Interface | LAN network port, RS-485, RS232 |
| Communication Protocol | MODBUS RTU/MODBUS TCP |
| Baud Rate | 1200/2400/4800/9600/19200/38400/57600/115200 |
| Control Load | AC or DC |
| Limit Current | 10A/250VAC 10A/30VDC |
| Input Indicator | yes (green) |
| Output Indicator | yes (red) |
| Reconnect after disconnection | support |
| Network Interface | RJ45 (10M/100M adaptive) |
| Working Mode | TCP service |
| Port Capacity | 2 |
| Configuration Method | through the built-in HTTP web page, or use the company’s software configuration |

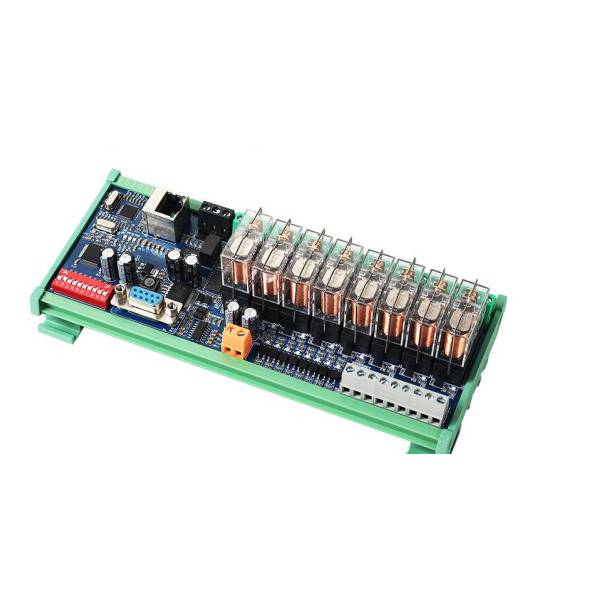

RS-485 Communication Omron Inputs Outputs Expansion Network Module
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | RS-485 Communication Omron Inputs Outputs Expansion Network Module | September 2022 |
