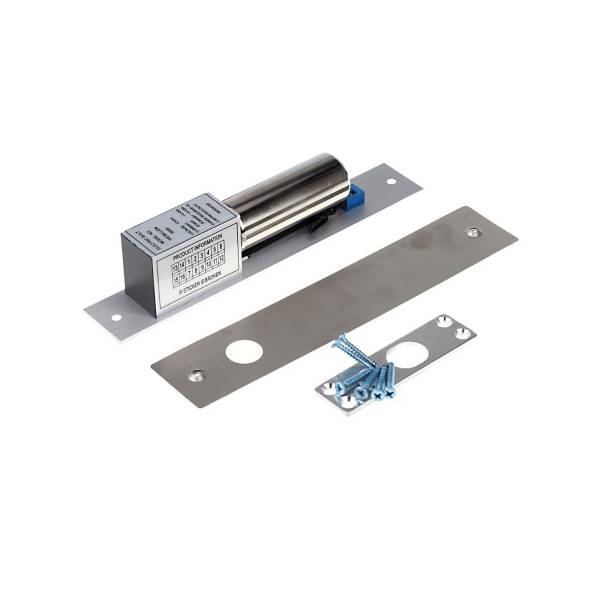

NC-Y100
Detail Specification :
- DC 12V Narrow Door Dead Bolt Lock/Electric Drop Lock NO/NC Type, 2Pin.
- Fail Safe, Special Designed Tested to 500000 cycles.
- Operating Temp : -10~+55 C (14-131F)°.
- Operating Humidity 0~90% (Non-condensing).
- Voltage DC12V, Induction Distance 8mm.
- Start Current 900mA / Standby Current 120mA.
- Solid Bolt Polishing housing, 800Kg Holding Force.
- Suitable for Wooden door, Glass door, Metal door.
- Face Place Material High Aluminum.
- Face Plate : 205 x 35 x 40mm.
- Strike : 90 x 25 x 2mm.
- Weight : 0.72Kg.
NC-Y100
Spesifikasi Detail :
- DC 12V untuk Pintu Sempit Dead Bolt Lock/Electric Drop Lock Tipe NO/NC, 2Pin.
- Fail Safe, Dirancang Khusus Diuji hingga 500000 siklus.
- Suhu Operasi : -10~+55 C (14-131F)°.
- Kelembaban Pengoperasian 0~90% (Non-kondensasi).
- Tegangan DC12V, Jarak Induksi 8mm.
- Mulai Arus 900mA / Arus Siaga 120mA.
- Perumahan Poles Baut Padat, Kekuatan Memegang 800Kg.
- Cocok untuk pintu kayu, pintu kaca, pintu besi.
- Wajah Tempat Bahan Aluminium Tinggi.
- Pelat Wajah : 205 x 35 x 40mm.
- Pukulan: 90 x 25 x 2mm.
- Berat: 0.72Kg.
