| Input | 600 ohms, 5mv un balanced(MIC) |
| Output | 10k ohms, 10v balanced |
| Frequency Response | MIC,Line: 100Hz – 16kHz (+/- 3dB) |
| S/N | Better than 70dB |
| THD | Less than 0.1% at 1kHz |
| Indicators | Indicators for 16 zones and 8 units |
| Protection | AC Fuse: 0.5A |
| Power Consumption | 5-10 watts |
| Power Requirements | DC 24V |
| Dimensions | 70(H) x 238(W) x 170(D) mm |
| Built-in Dimensions | NA |
| Net Weight | 2.3kg |
| Gross weight | 3.2kg |
DSS-RPS16
Features :
- Manage up to 8 pcs of DSS-RPS16 for total 128 loudspeaker lines.

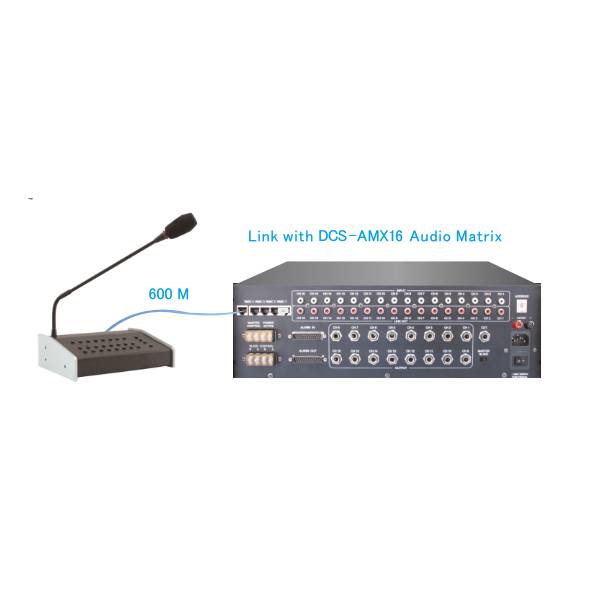

- Communication via maximum 600 meters distance.
- With CHIME tone settings.
- All ON/OFF button.
Description
Datasheet
Manual Installation
Manual Installation
Version
| No | Name | Date |
|---|---|---|
| 1 | DSS-RPS16 | September 2022 |
