| Model | Access Bandwidth | Main Features |
| NTT-NVR51289 | 640M | 128 Channel 4K NVR H.265 9 SATA HDD Slot (Max 8TB x 9) RAID 0/1/5/6/10 Alarm : 16ch In and 8ch Out Power Plug : ATX 100 – 240V 300W 50 – 60Hz Gross Weight : 10Kg Size : 437 x 432 x 90 mm |
| NTT-NVR512816 | 640M | 128 Channel 4K NVR H.265 16 SATA HDD Slot (Max 8TB x 16) RAID 0/1/5/6/10 Alarm : 16ch In and 8ch Out Power Plug : ATX 100 – 240V 300W 50 – 60Hz Gross Weight : 19Kg Size : 600 x 432 x 135 mm |
| NTT-NVR512824 | 640M | 128 Channel 4K NVR H.265 24 SATA HDD Slot (Max 8TB x 24) RAID 0/1/5/6/10 Alarm : 16ch In and 8ch Out Power Plug : ATX 100 – 240V 400W 50 – 60Hz Gross Weight : 23Kg Size : 600 x 432 x 178 mm |

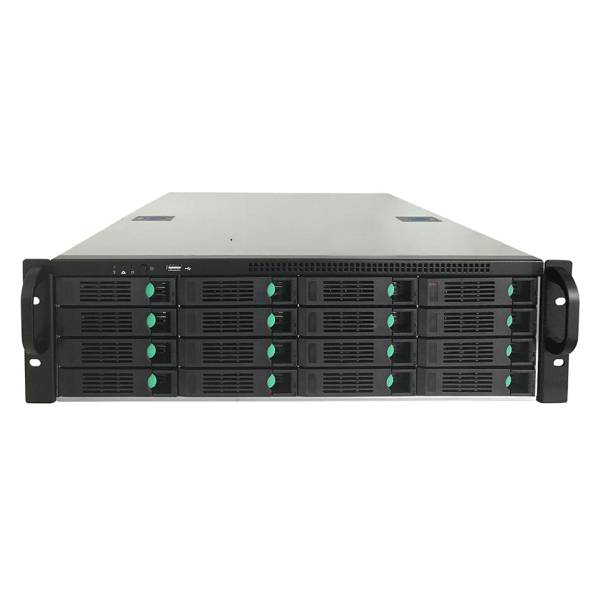

128 Channel 4K NVR (9HDD/16HDD/24HDD) (Hisilicon Chipset)
Features :
- 128 Channel 4K NVR H.265.
- Support Onvif, P2P, Third-party IP Cameras.
- Support IE, Firefox, Chrome, Safari Main Browser, P2P mobile App, CMS or VMS.
- Support 15 x digital zoom in Preview / Play Back.
- Playback : 4CH 4K or 16ch 1080DP Main Stream Simultaneously.
- Standard Port : USB3.0 x 1, USB2.0 x 2, VGA x 2, HDMI x 2, RS-485 x 1, 1Ch Intercom, 1 x E-SATA, RJ-45 x 2.
- Protocols : TCP/IP, Ipv4, HTTP/HTTPS, NTP, DNS, ONVIF, SPR, RTSP, RTMP.
- Smart Function with Onvif Protocol : Target counting, Electronic fance, Humanoid detection, Retrograde detection, Off-post detection, Electric vehicle detection, etc.
Description
Related products
128 Channel 4K NVR (9HDD/16HDD/24HDD) (Hisilicon Chipset)
Fitur :
- 128 Channel 4K NVR H.265.
- Support Onvif, P2P, Third-party IP Cameras.
- Support IE, Firefox, Chrome, Safari Main Browser, P2P mobile App, CMS or VMS.
- Support 15 x digital zoom pada Pratinjau / Putar Ulang.
- Putar Ulang : 4CH 4K or 16ch 1080DP Main Stream Simultaneously.
- Standard Port : USB3.0 x 1, USB2.0 x 2, VGA, HDMI, RS-485, 1Ch Intercom, 1 x E-SATA, RJ-45 x 2.
- Protocols : TCP/IP, Ipv4, HTTP/HTTPS, NTP, DNS, ONVIF, SPR, RTSP, RTMP.
- Fungsi Pintar dengan Protokol Onvif : Penghitungan target, Kipas elektronik, Deteksi humanoid, Deteksi retrograde, Deteksi off-post, Deteksi kendaraan listrik, dll.
Description
| Model | Akses Bandwidth | Fitur Utama |
| NTT-NVR51289 | 640M | 128 Channel 4K NVR H.265 9 SATA HDD Slot (Max 8TB x 9) RAID 0/1/5/6/10 Alarm : 16ch In and 8ch Out Power Plug : ATX 100 – 240V 300W 50 – 60Hz Gross Weight : 10Kg Size : 437 x 432 x 90 mm |
| NTT-NVR512816 | 640M | 128 Channel 4K NVR H.265 16 SATA HDD Slot (Max 8TB x 16) RAID 0/1/5/6/10 Alarm : 16ch In and 8ch Out Power Plug : ATX 100 – 240V 300W 50 – 60Hz Gross Weight : 19Kg Size : 600 x 432 x 135 mm |
| NTT-NVR512824 | 640M | 128 Channel 4K NVR H.265 24 SATA HDD Slot (Max 8TB x 24) RAID 0/1/5/6/10 Alarm : 16ch In and 8ch Out Power Plug : ATX 100 – 240V 400W 50 – 60Hz Gross Weight : 23Kg Size : 600 x 432 x 178 mm |
